PALLETSTAR. PROGRAMMABLE WORKING CELL FOR AUTOMATIC AUTOMATIC NAILING AND STACKING OF PALLETS AND PACKAGES.
New product
PALLETSTAR consists of:
1 CNC NAILING MACHINE
1 ROTARY SET OF 3 TABLES
1 KUKA ANTHROPOMORPHIC ROBOT

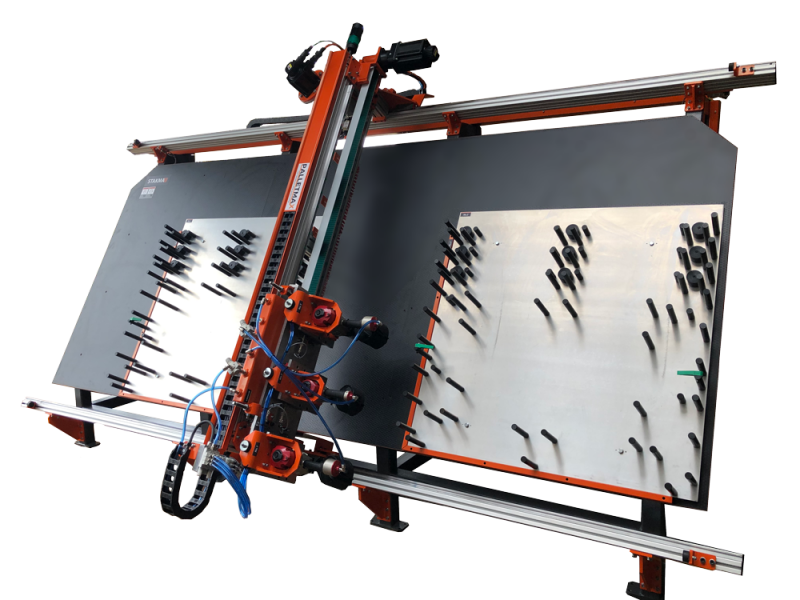

NAILING CNC
Executes automatically the nailing cycles that have been previously programmed.
- It can execute any nailing format
- The change of pallet model is very fast: just select the required program and change the pallet template.
pallet template
- The elaboration of the different nailing programs is very simple and intuitive. It is a point-to-point
point to point system with self-learning.
TECHNICAL FEATURES:
Robust bridge that moves laterally: X movement. Controlled by DELTA SERVOMOTOR.
The carriage slides vertically on the bridge: Y movement. Controlled by SERVOMOTOR
DELTA.
The pneumatic nailing guns are placed on the carriage. Our standard are MAX brand guns (made in USA).
(made in USA). Up to 4 guns can be mounted
If during the working cycle a gun runs out of nails, the program is interrupted and the PC indicates which gun is to be reloaded.
which is the gun to be reloaded. Once reloaded, the cycle restarts where it left off.

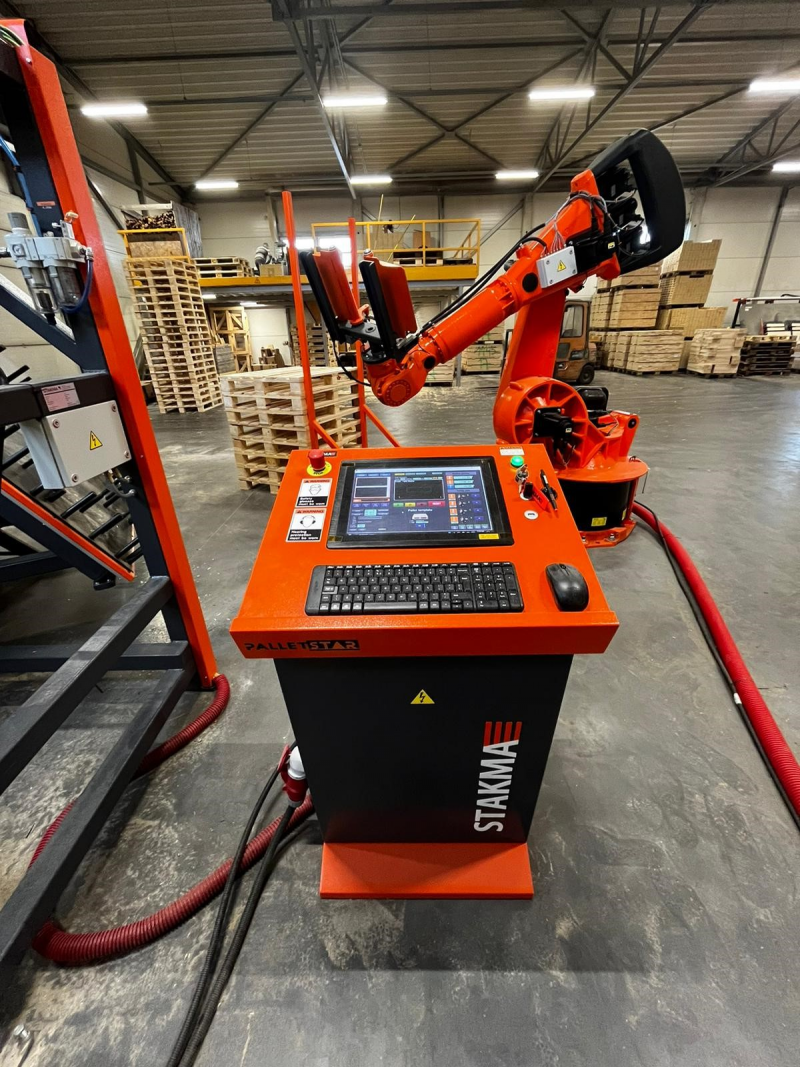

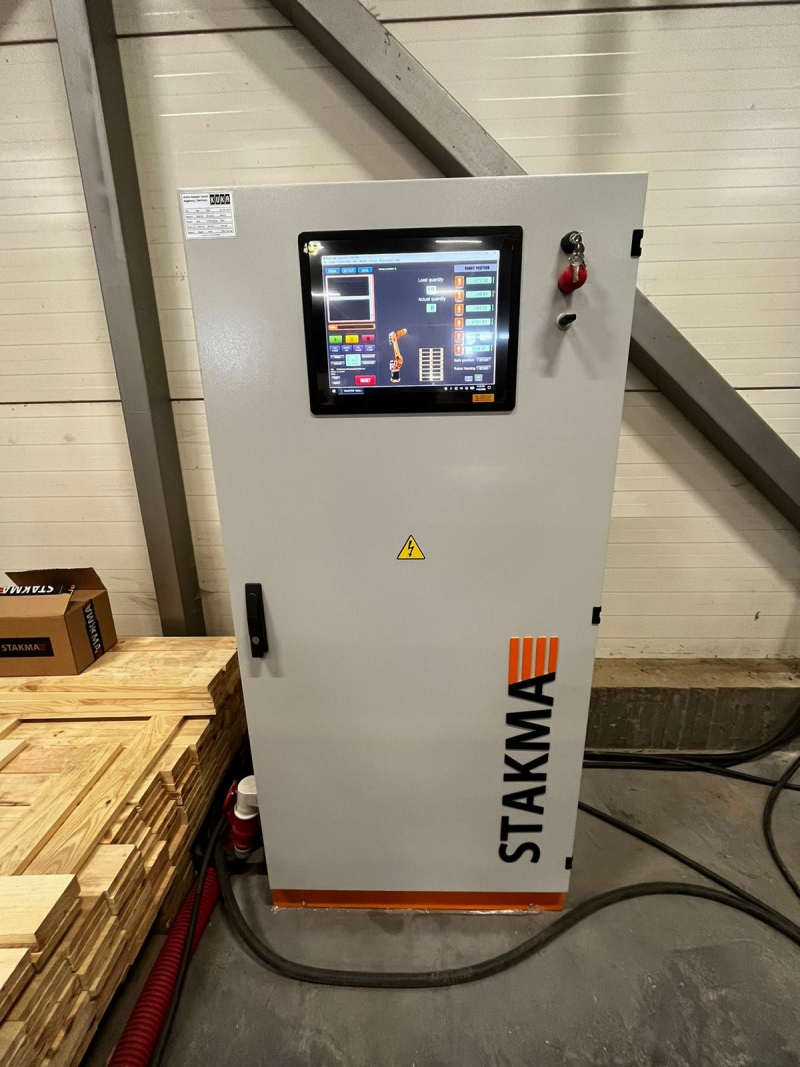

Industrial PC with WINDOWS 10. WiFi internet connection. 15" touch screen

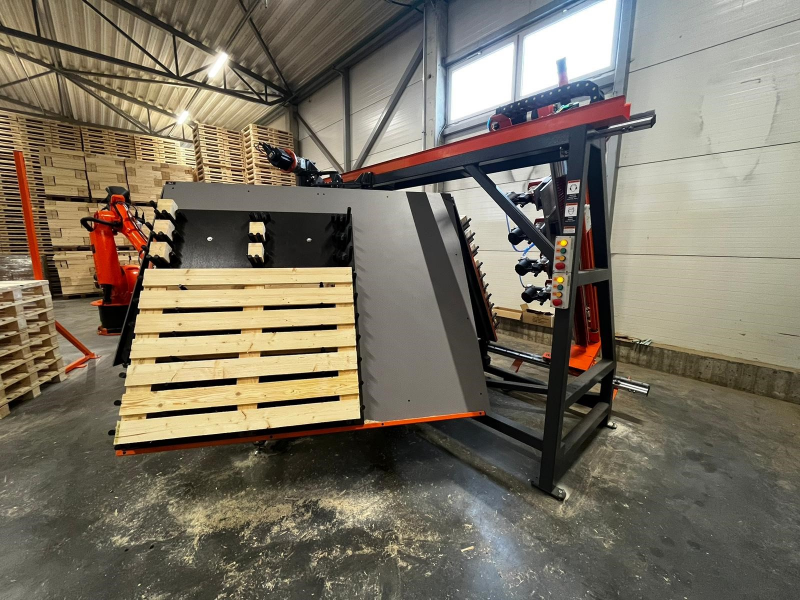

ROTATING TRIPOD WITH 3 TABLES
Set of 3 work tables joined together. Each one of them has its corresponding template, all of them the same.

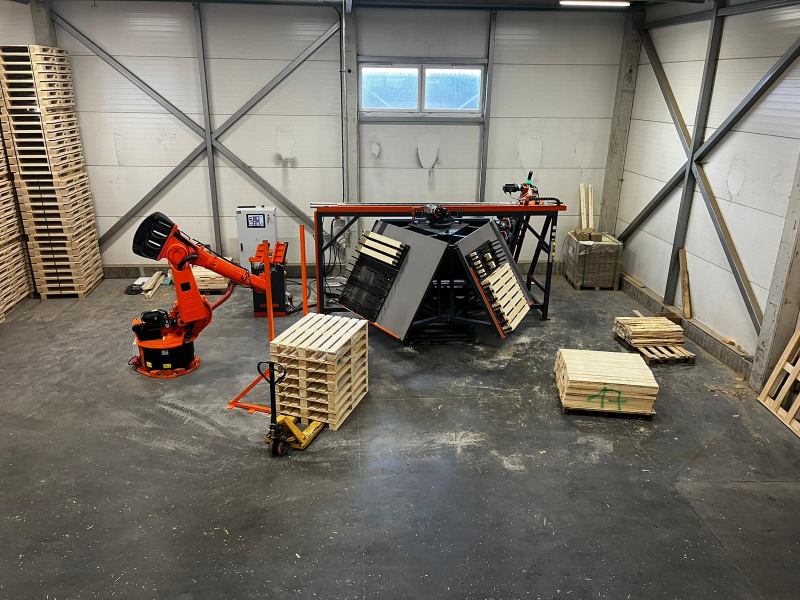

PALLETSTAR defines 3 work stations.
STATION 1: Assembly of the pallet or packaging. The operator places all the elements on the template.
STATION 2. Automatic nailing. Work performed by the CNC Nailing machine.
STATION 3: Stacking of the pallets, carried out by the ANTHROPOMORPHIC ROBOT.
The tables move from one station to another by means of a motorized rotary movement, in steps of 120º, with precision pneumatic
precision pneumatic interlocking at each station.

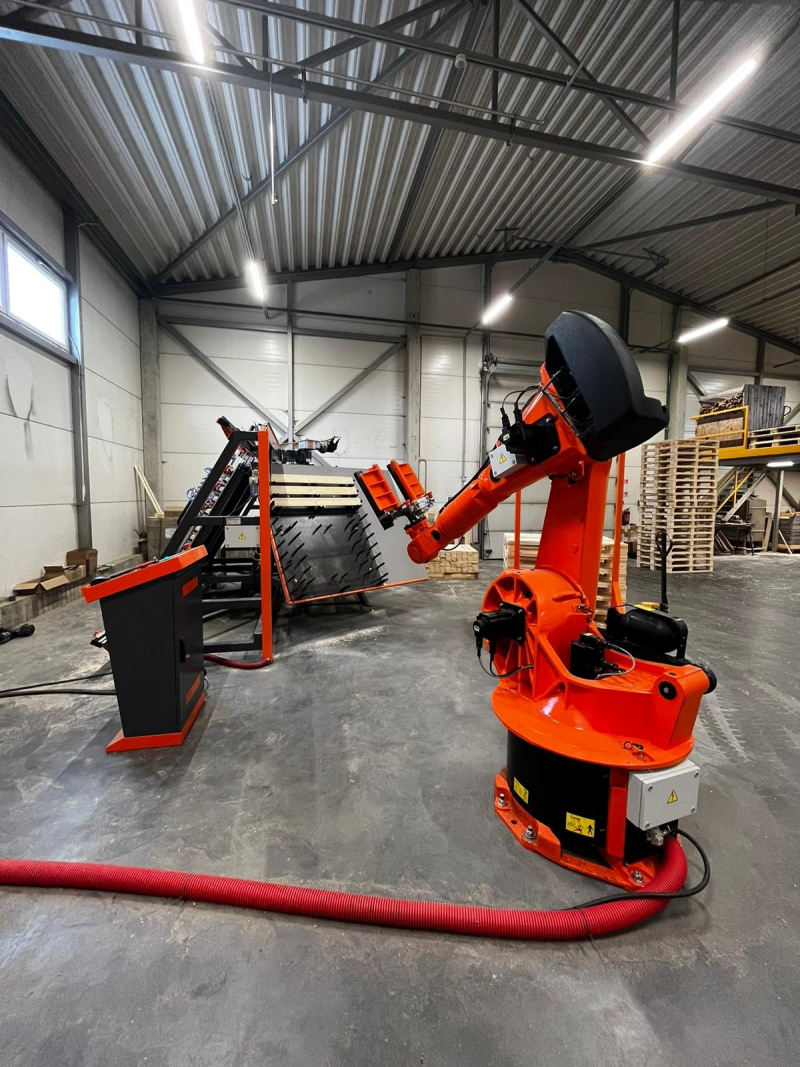

KUKA ANTHROPOMORPHIC ROBOT
Used robot (it is the only used element of this offer)
6-axis
Prepared for heavy elements
Completely overhauled
New software
New pallet gripper new
Stacks pallets, nested or un-nested, as desired
Warranty as new: 12 months
More info
WORKING METHOD
Starting from the empty nailing cell,
1. The operator mounts on the template the elements of the pallet/packaging 1 to be manufactured. Each time the assembly is finished, he presses the
Each time the assembly is finished, the operator presses the start button and the table rotates 120º.
2. The operator mounts on the template the elements of the pallet/package 2 to be manufactured.
At the same time the CNC Nailing machine nails the pallet/package 1.
3. The operator mounts on the template the elements of the pallet/package 3 to be manufactured.
At the same time the CNC Nailing machine nails the pallet/package 2.
At the same time the ANTHROPOMORPHIC ROBOT picks up and stacks the pallet/package 1.
4. The operator mounts on the template the elements of the pallet/package 4 to be manufactured.
At the same time the CNC Nailing machine nails the pallet/package 3.
At the same time the ANTHROPOMORPHIC ROBOT picks up and stacks the pallet/package 2.
5. The operator mounts on the template the elements of the pallet/package 5 to be manufactured.
At the same time the CNC Nailing machine pins the pallet/package 4
At the same time the ANTHROPOMORPHIC ROBOT picks up and stacks the pallet/package 3.
6. Etc.......
In other words, from the 3rd pallet onwards, 3 operations are carried out at the same time: assembly + nailing + stacking. The
The pace is set by the operator, who works very comfortably:
- He assembles the pallet vertically
- He does not have to hold the nailing gun.
- No need to unload the pallet
- No need to stack the pallet
- If he has the material well positioned, he does not move from his work station, STATION 1.
With only one worker you get high productivity
AVAILABLE MODELS AND PRICES
PALLETSTAR 1600. 3 work tables, each with a useful field of 1.600 mm x 1.700 mm. 3 GUNS
MAX CN: CN80 + CN55 + CN80
PALLETSTAR 1800. 3 working tables, each with a useful field of 1.800 mm x 1.700 mm. 3 GUNS
MAX CN: CN80 + CN55 + CN80
PALLETSTAR 2400. 3 working tables, each with a useful field of 2.400 mm x 1.700 mm. 3 GUNS
MAX CN: CN80 + CN55 + CN 80
PALLETSTAR 2600. 3 working tables, each with a useful field of 2.600 mm x 1.700 mm. 3 GUNS
MAX CN: CN80 + CN55 + CN 80
OPTIONALS
ADDITIONAL NAILING GUN.
SPECIAL JUMBO LOADER (+-1000-1100 nails).
FIXED TEMPLATES PREPARED TO NAIL THE SKIDS IN THE UPPER ZONE AND THE PALLET IN THE LOWER ZONE.
PALLET IN THE LOWER AREA.
SET OF 3 STANDARD (FIXED) PLATES FOR PALLET UP TO 1.600 mm.
SET OF 3 STANDARD PLATES (FIXED) FOR PALLETS OVER 1.600 mm.

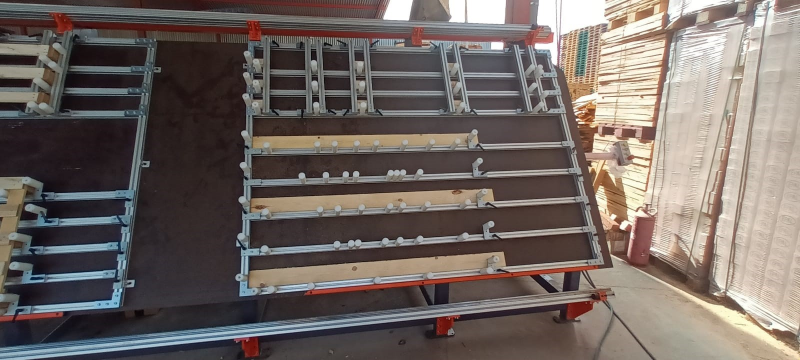

FLEXIBLE TEMPLATES PREPARED TO NAIL THE SKIDS IN THE UPPER ZONE AND THE PALLET IN THE LOWER ZONE AND THE PALLET AT THE BOTTOM.
SET OF 3 ADJUSTABLE JIGS FOR PALLETS UP TO 1.600 mm.
SET OF 3 ADJUSTABLE PLATES FOR PALLET UP TO 1.800 mm.
SET OF 3 ADJUSTABLE PLATES FOR PALLET UP TO 2.400 mm.
SET OF 3 ADJUSTABLE PLATES FOR PALLET UP TO 2.600 mm.
