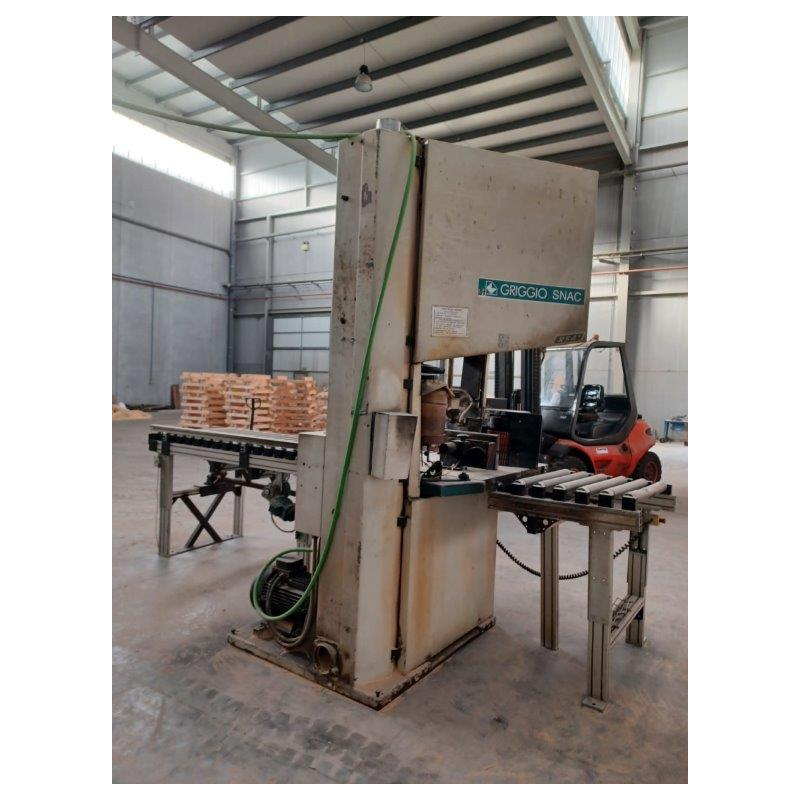

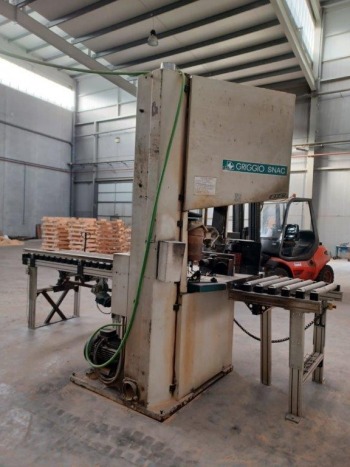

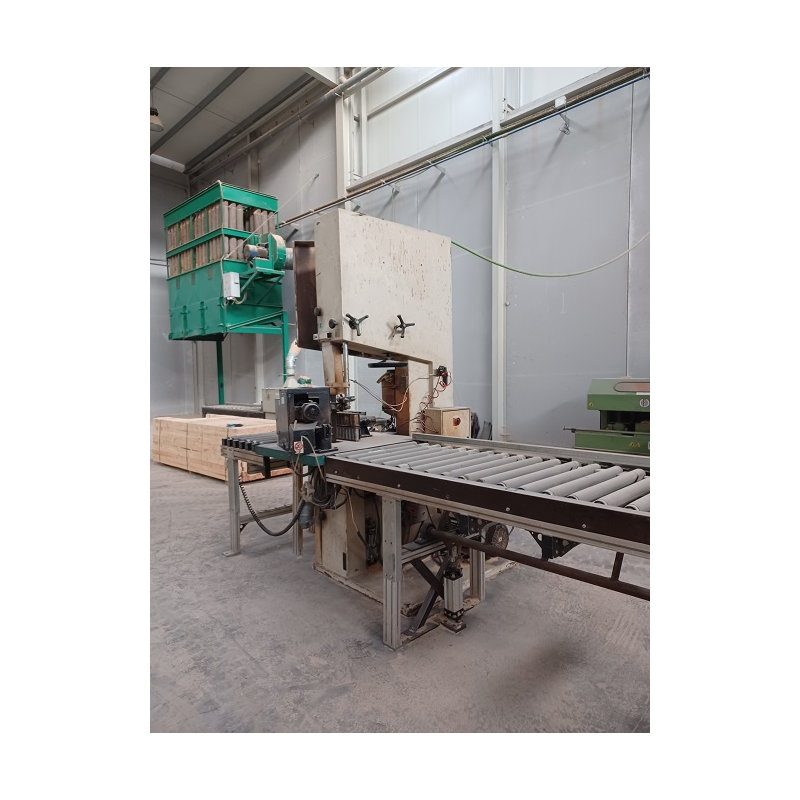

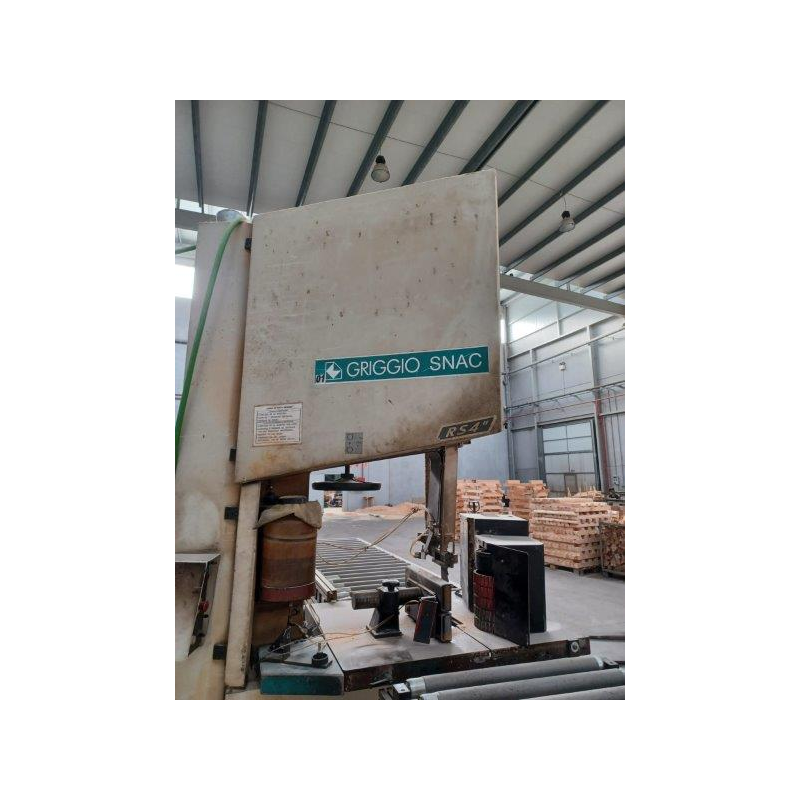

PLANK UNFOLDING MACHINE GRIGGIO

Used

TECHNICAL CHARACTERISTICS

- Solid cast iron wheels of D940 mm
- Tiltable table
- Maximum width. of the saw blade 90 mm. (SNAC 940R)
- Upper and lower saw blade guide with wooden elements
- Saw blade tension indicator
- Lubricated bronze wipers for upper and lower flywheels.
- Double suction mouth
- Protection of saw blade with rack movement.
- Max. height cutting 600 mm.
- Engine power 30 Hp
- Approximate weight 900 kg
- EC REGULATIONS
CAM MECCANICA PLANK FEEDER.
- Variable speed 0-25 m/ min.
- Drive sprocket with 230 mm high roller
- Lateral guide with idle rollers and metric for size adjustment.
- Motor power 0.50 Hp
- EC REGULATIONS

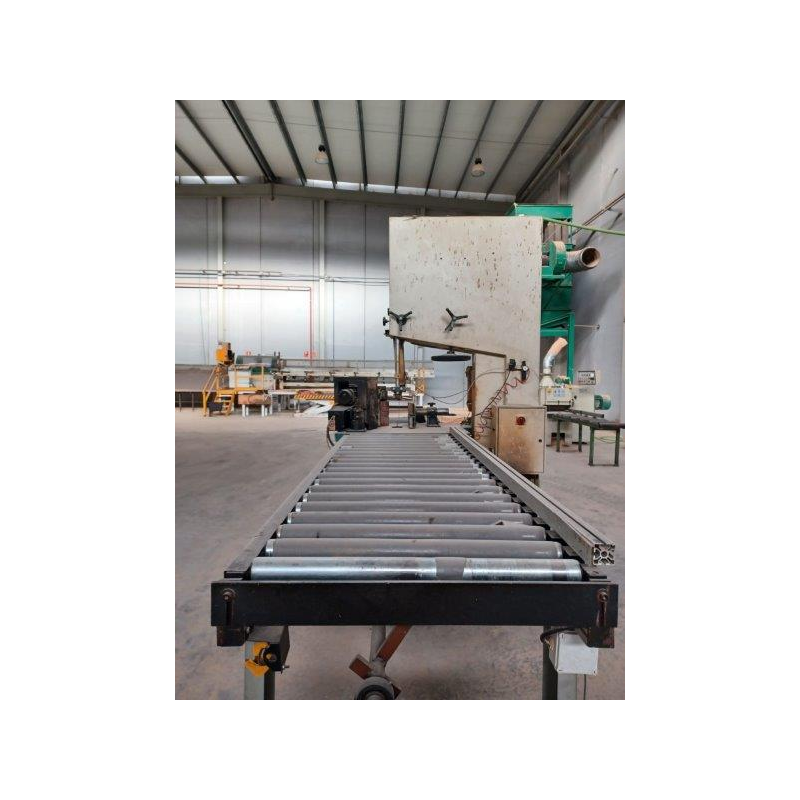

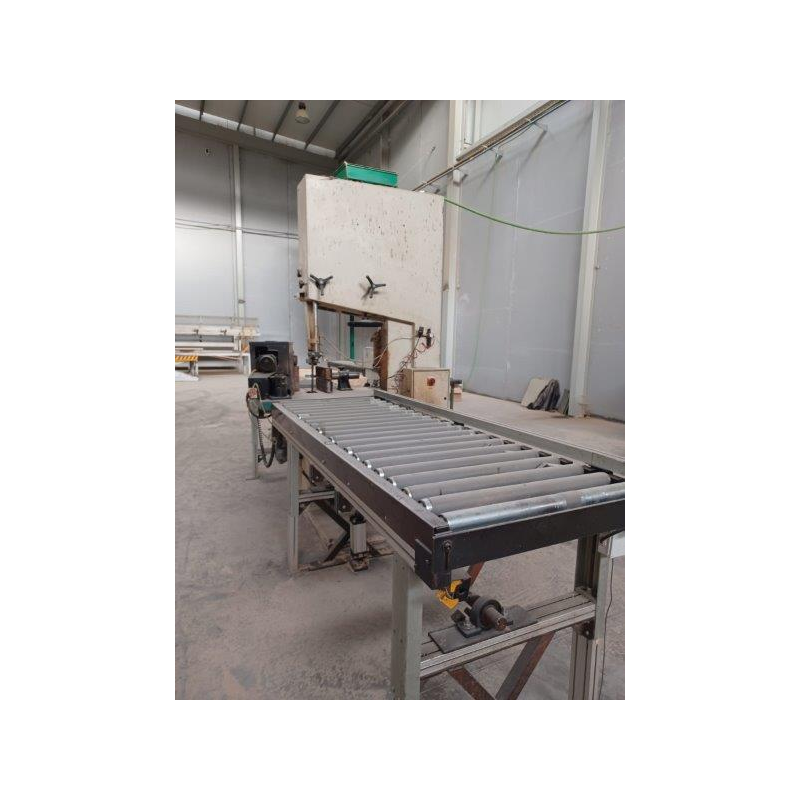

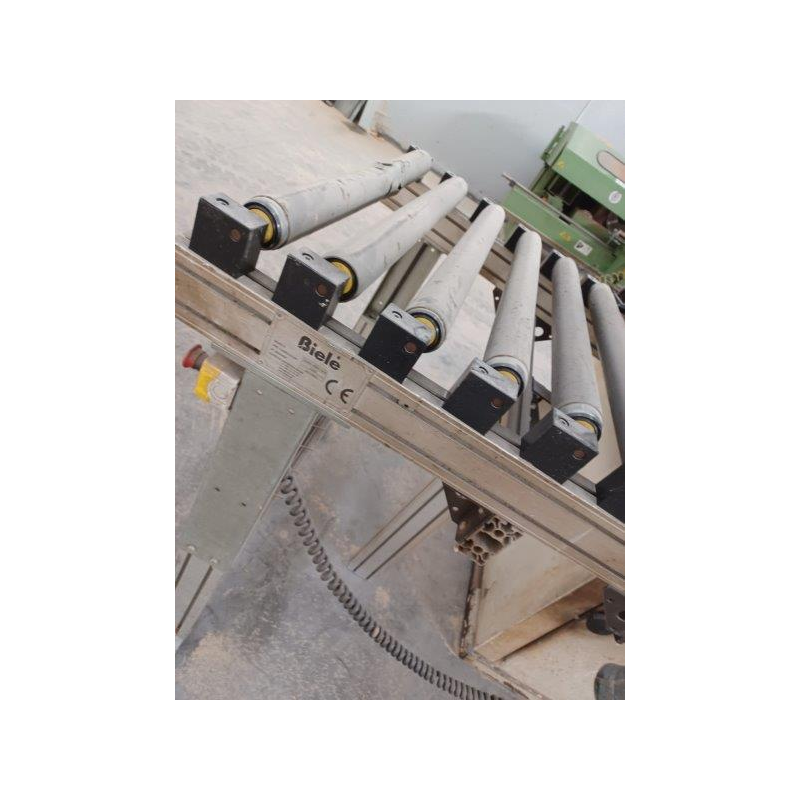

BIELE ROLLER TRANSFER.
- Transfer of crazy rollers at the entrance. Measurements 800x850 mm and side guide
- Motorized roller transfer at the exit, with speed variator and ejectors.
Measures 2500x850 mm and lateral guide.
- EC REGULATIONS
