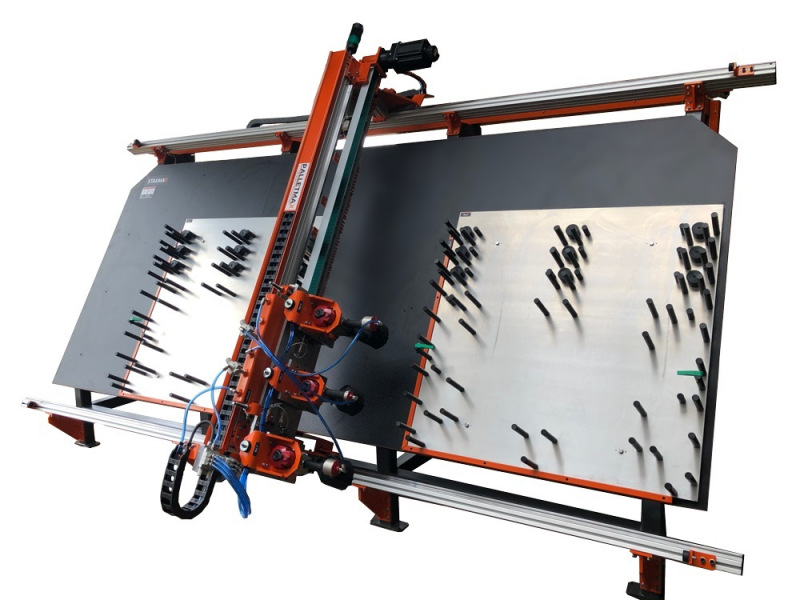

CNC MACHINE FOR NAILING PALLETS AND PACKAGING ELEMENTS PALLETMAX 4500/6000/7500/9000/11.000
New product
This machine automatically executes the nailing cycles that have been previously programmed.
1. It can execute any nailing format
2. The change of pallet model is very fast: just select the required program and change the pallet template.
pallet template
3. The elaboration of the different nailing programs is very simple and intuitive. It is a point-to-point
point to point system with self-learning

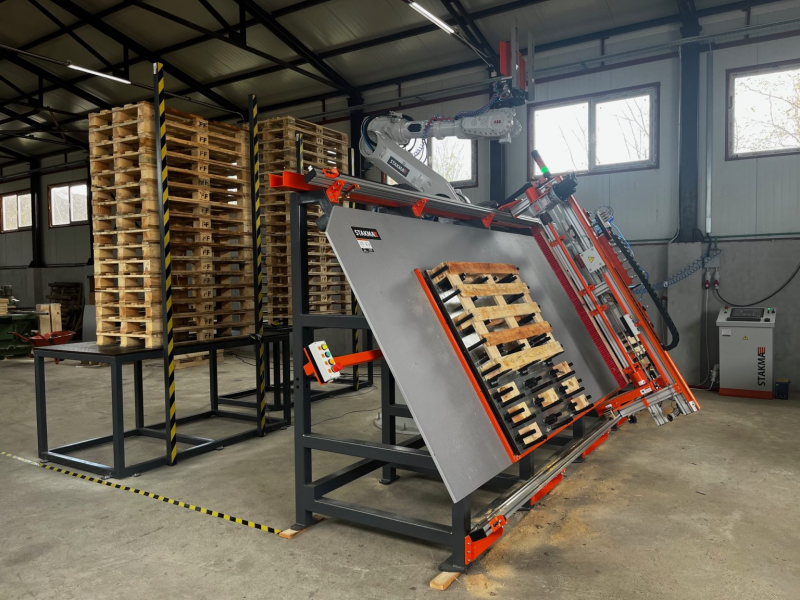

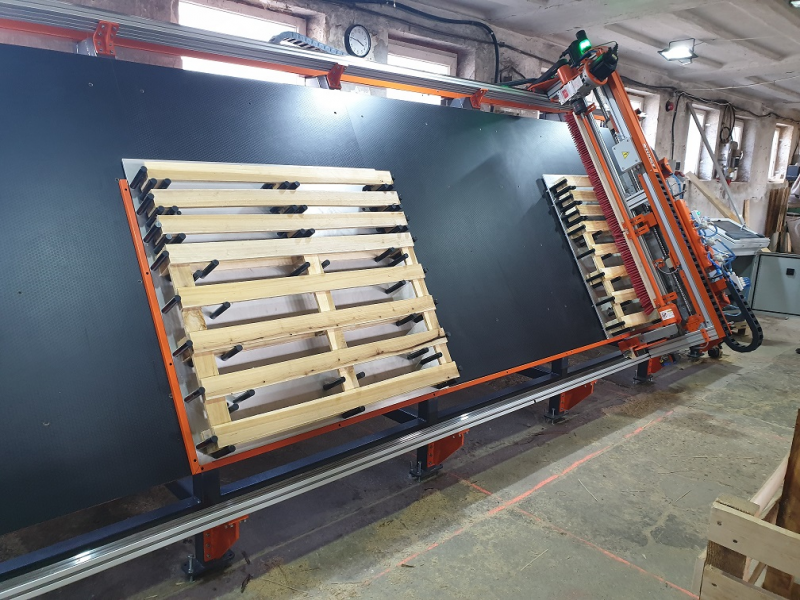

4. High productivity: While the machine is running a nailing cycle on one side of the work table, on the other side the operator is making a new pallet.
5. Allows the execution of large pallets. In this particular model it is possible to produce a pallet with a maximum size of 4.000 mm.
pallet with maximum dimensions of 4.700 mm x 1.800 mm.
6. Working vertically is much more comfortable to compose the pallet and to unload it. In addition, the machine
takes up less space.
More info
TECHNICAL CHARACTERISTICS:
Useful averages working in a single field: Length depending on model and height.
1.700 mm
Useful measurements working in two working fields (right and left): Length
depending on the model and height 1700 mm each one
Robust bridge that moves laterally: X movement. Controlled by
DELTA SERVOMOTOR
The carriage slides vertically on the bridge: Y motion. Controlled
by DELTA SERVO MOTOR
The pneumatic nailing guns are placed on the carriage. Our standard are
MAX brand guns (made in USA).
If during the working cycle any of the guns runs out of nails, the program is interrupted and the
the program is interrupted and the PC indicates which gun needs to be reloaded. Once reloaded
the cycle restarts at the point where it left off.
Industrial PC based on WINDOWS system. 15" touch screen
External dimensions of the machine: Depending on the model.
CE regulations
ASSEMBLED EQUIPMENT:
GUN NO. 1: MAX CN 85: nails from 50 mm to 83 mm. Diam
. 2,5 mm to 3,1 mm
GUN No. 2: MAX CN 55: nails from 25 mm to 32 mm. Diam. 2,1 mm to 2,5 mm
GUN No. 3: MAX CN 85: nails from 50 mm to 83 mm. Diam. 2,5 mm to 3,1 mm
GUN No. 4: MAX CN 55: nails from 25 mm to 32 mm. Diam. 2,1 mm to 2,5 mm.
OPTIONALS.
Set of 2 templates for 1200x1050 mm pallets and three skids. They are fixed with 4 screws to the working table of the
to the machine's work table.
Set of 2 templates for pallets and their skids of bigger dimensions. They are fixed with 4 screws to the
to the machine's work table.
Large capacity Jumbo loaders (approx. 1.000 - 1.200 nails).
