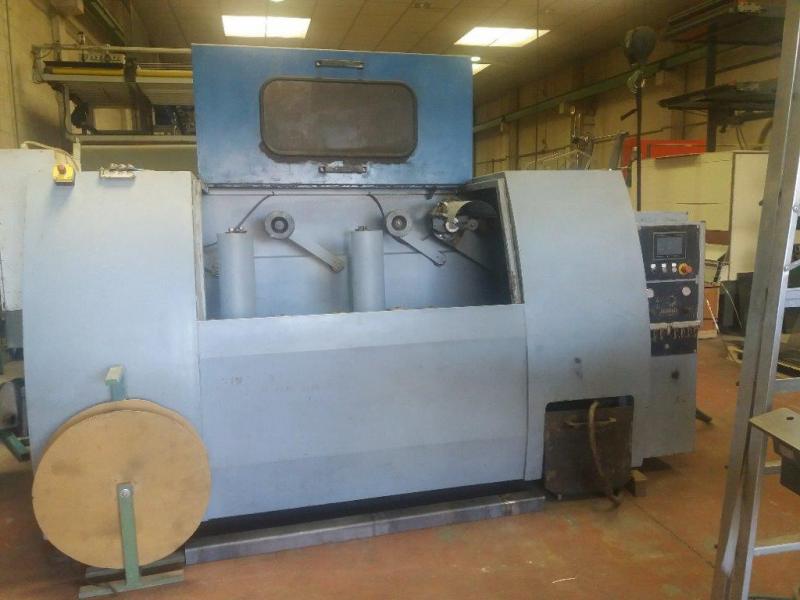

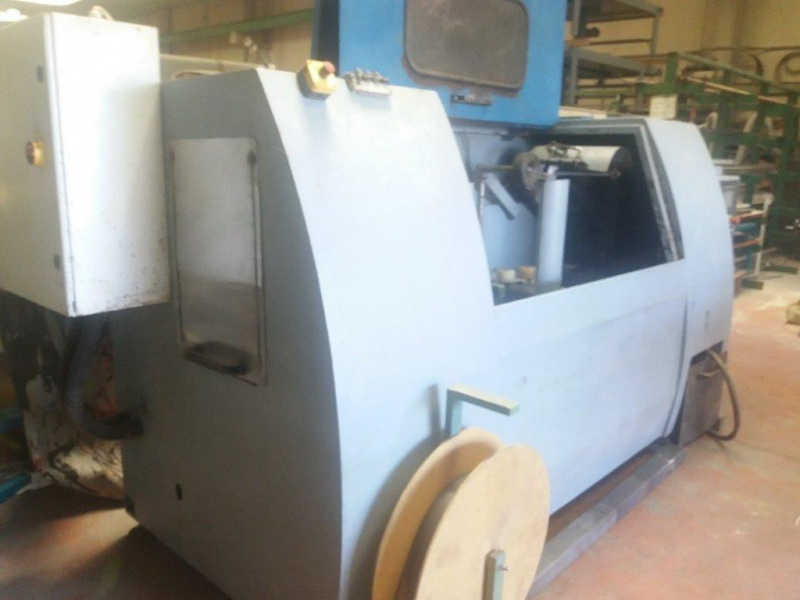

SARMAX IMPREGNATION MACHINE, MODEL APACHE 10.

SARMAX IMPREGNATING MACHINE, MODEL APACHE 10.

Maximum width of the piece to work. 300 mm

Maximum height of the piece to work. 500 mm

Minimum length of the piece to work. 800 mm

Automatic pneumatic pump for the impregnating product.

Feed rate regulated by INVERTER. 8 to 60 m/min

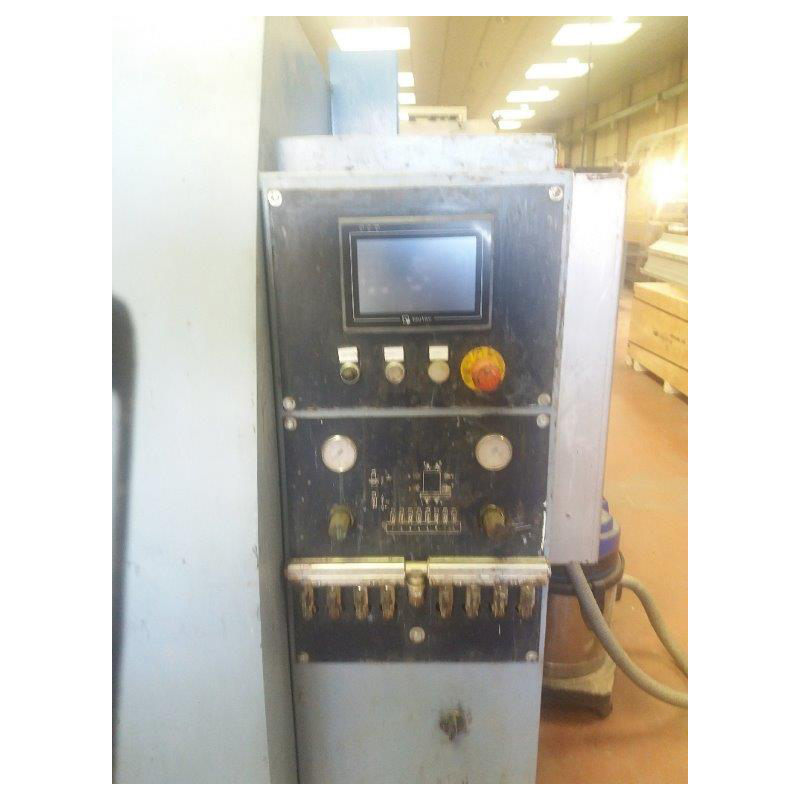

Motorized and electro-assisted brush positioning with PLC, with touch screen with program memory and display of height and width dimensions.

Brushes diameter. 160 mm

Automatic pump for the expulsion of the impregnating agent of 50 l/min.

2 brushes per side.

No. 3 filters for cleaning the impurities of the liquids (one at the beginning of the absorption tube, one main filter before the extrusion and one in the impregnation tank).

1 tank for cleaning brushes.

1 tank for the recovery of the impregnating product with filter in the form of a cup.

No. 2 side blowers for the impregnation and cleaning of impurities on tongue and groove parts.

Internal and external coating of the machine structure with anti-adherent material (Teflon).

Used machine (year 2011).
