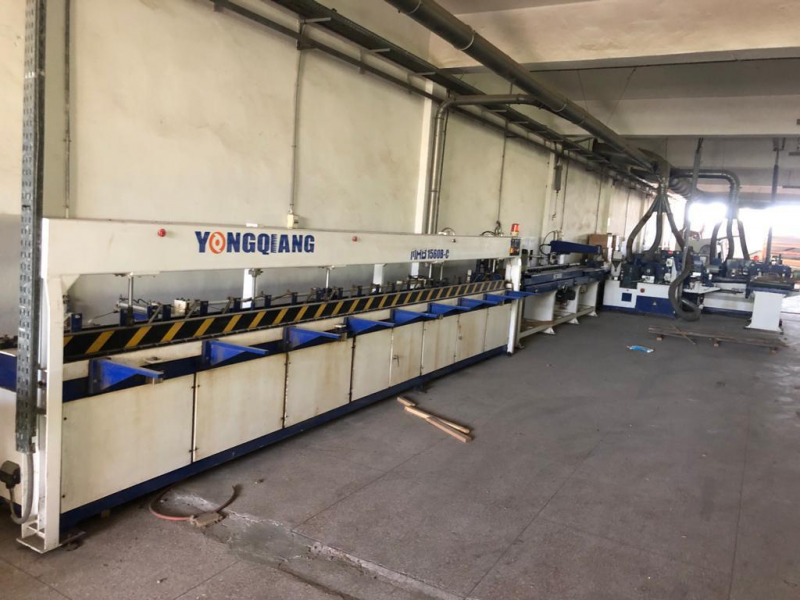

AUTOMATIC FINGER-JOINTING LINE WITH DOUBLE HEAD AND 6,000 MM PRESS, YONGQIANG BRAND, MODEL MAB1560B-C.

- Independent control panel.
- Belt transfer, for the introduction of the pieces with two longitudinal fields and on/off stop barrier in the middle.
- 1st Finger-jointing machine, complete with sliding carriage, belt for the introduction of the pieces, end trimming unit and shaper unit.
- 2nd Finger-jointing machine, complete with sliding carriage, belt for parts introduction, end trimming unit, shaper unit and gluing unit.
- Transfer with motorized rollers.
- Transfer with piece by piece separation system.
- Transfer with dragging system by means of two lateral chains, one of them adjustable to the width of the pieces.
- Horizontal hydraulic rollers to introduce pieces, adjustable in height.
- Hydraulic press, for finger jointing of parts, with cutting disc, ejector and support arms. Working capacity up to 6000x150x100h mm and possibility of working one or two pieces at the same time, as long as the sum does not exceed 6000 mm.
- The machine is delivered with its discs, milling cutters, tool, instruction book and electrical diagram.
- Used line, completely overhauled. Year of manufacture 2005
- CE safety certificate
