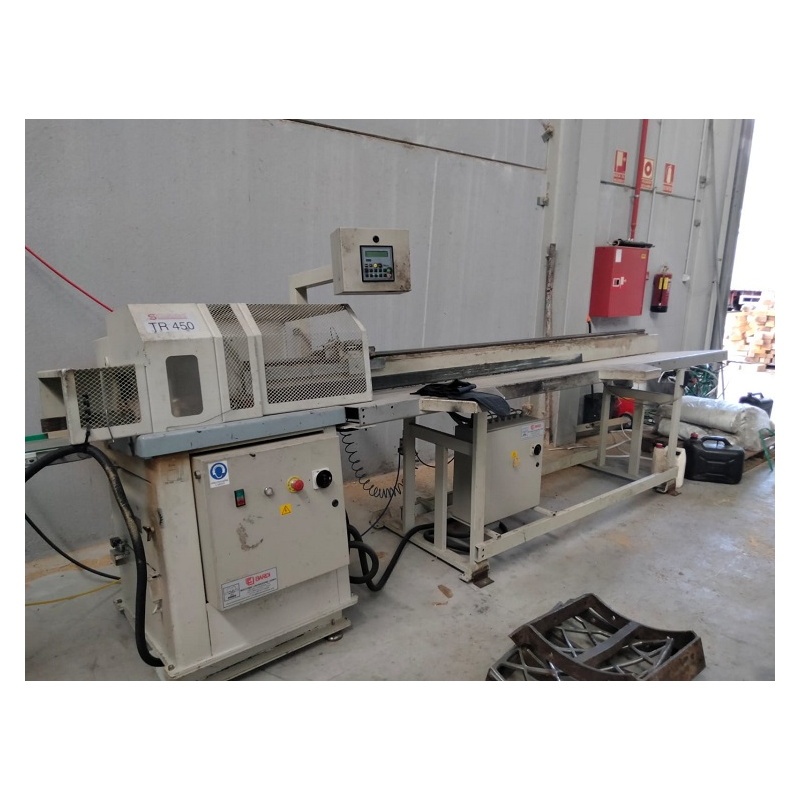

STROMAB AUTOMATIC CUT-OFF MACHINE TR450+MATRIX1-2500

Maximum working length 2,500 mm

Cutting capacity: 25x330, 40x310, 60x290, 85x277, 95x265 mm.

Minimum working thickness 10 mm

Work table inclined 8º

Technical characteristics miter

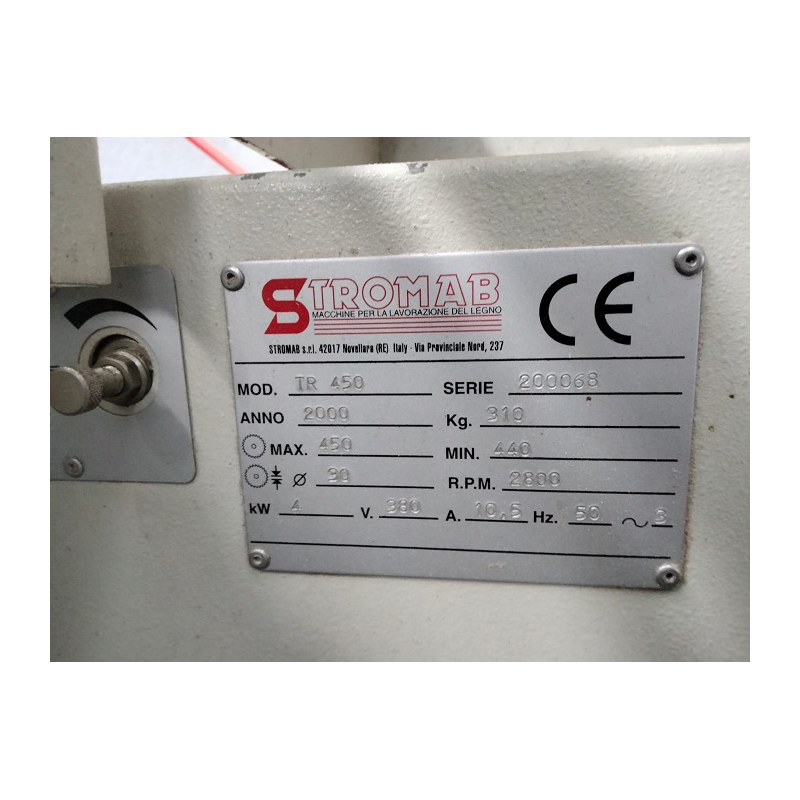

TR450 hydraulic cut-off machine

Motor Hp 5.5 (4 Kw), 400W/50Hz.

Widea disc D450 mm.

Pusher technical characteristics.

Pusher direction: from right to left

Toothed belt advance system.

Positioning accuracy +/- 0.4 mm

60 kg towing capacity.

Pusher maximum speed 60 m/ min.

Pneumatic rise of the pusher at the end of the cutting cycle and raised return.

Magnetic stripe position reading

Management system and data entry.

Programmer with measurement display and command keyboard

Creation of cutting lists directly in the program on board the machine.

Manual introduction of the length of the piece to be cut.

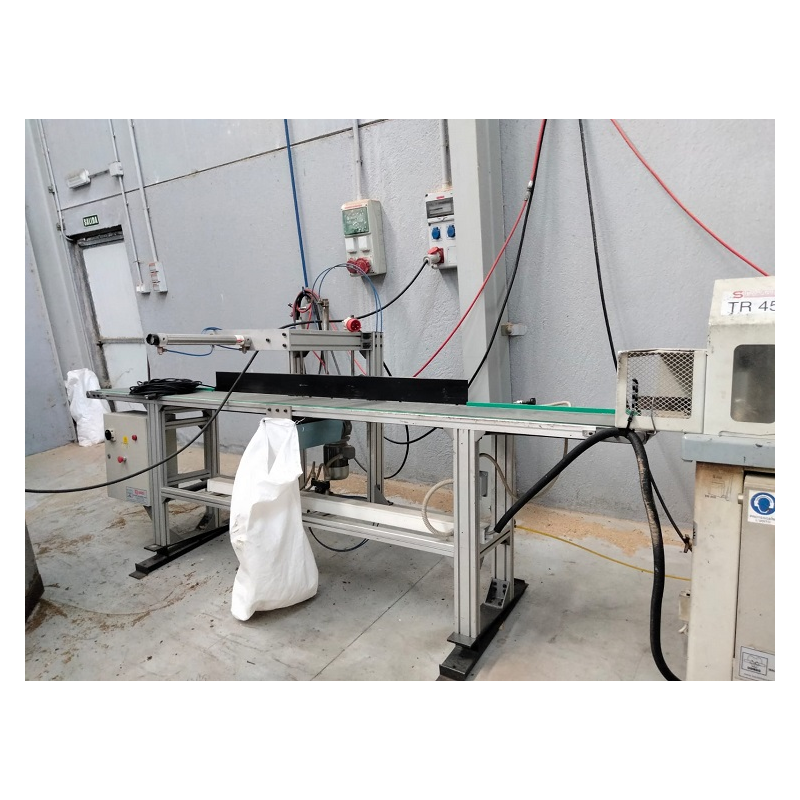

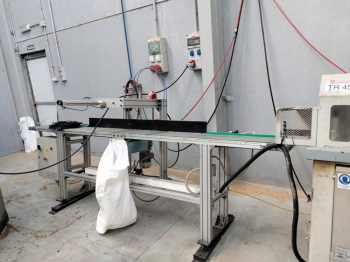

Automatic unloader (not manufactured by STROMAB).

Drag belt with speed variator adapted to the speed of the pusher. The belt starts and stops at the same time as the pusher

3,000 mm long bar ejector.

Parts reading photocell.

This ejector acts every time the pusher has completed a cutting cycle, laterally ejecting all the pieces that have been cut in that cycle at the same time.

Used machine. Year of manufacture 2000
