VERDÚ BRAND MODULE ASSEMBLY PRESS

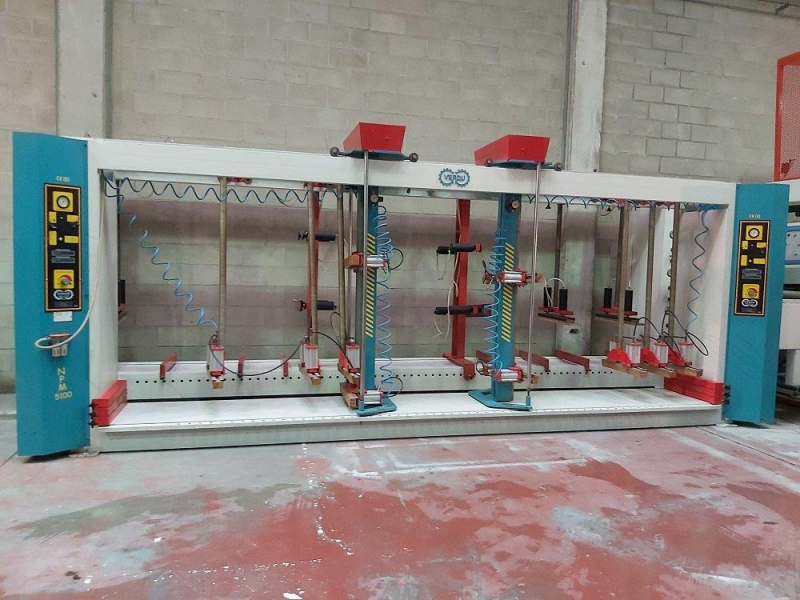

Pneumatic module assembly press, VERDÚ brand, model MPM 5100

Inner dimensions of the press: 5100x1350h mm.
Two working fields.

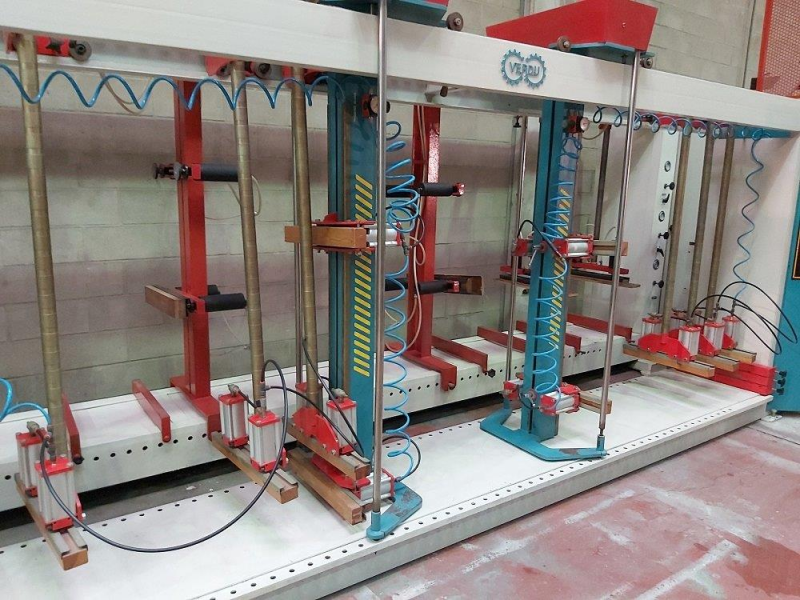

No. 6 vertical mobile arms with 2 pneumatic pistons each.
No. 2 mobile lateral turrets with 4 pneumatic pistons each. Each turret adjusts to the width of the side pressing of the furniture.
Total 20 pneumatic pistons.
Quick measurement adjustment of the mobile arms and turrets.

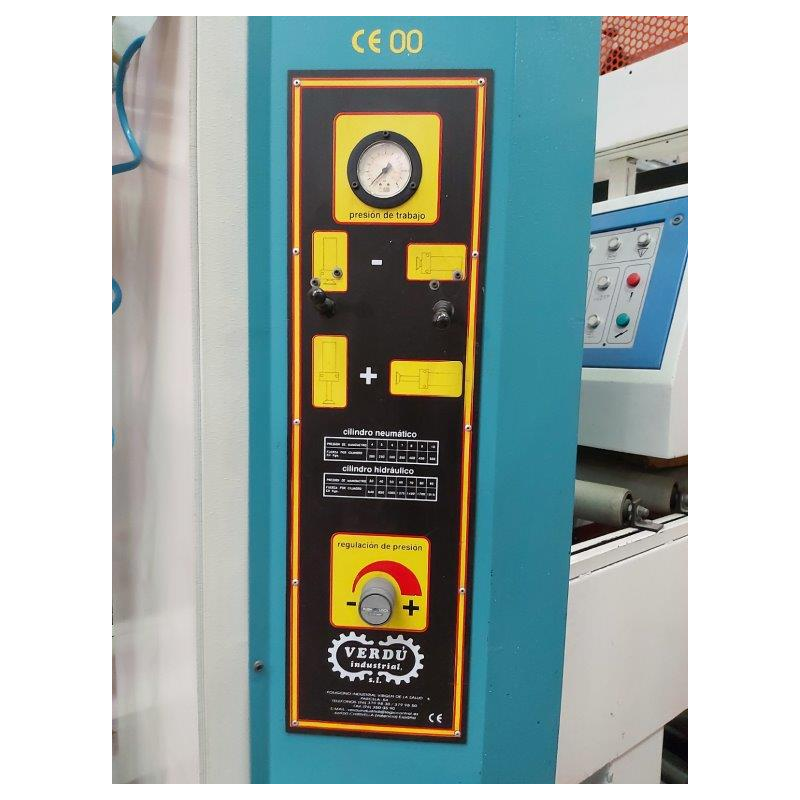

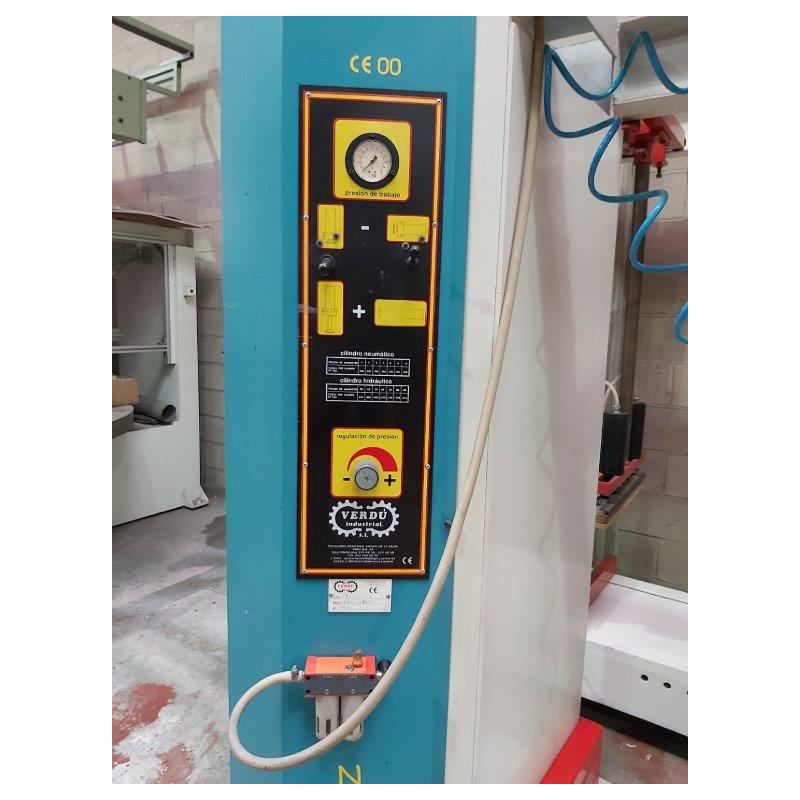

Each working field has a pressure gauge with pressure regulator and two keys for compressed air input/output to the vertical and horizontal pistons.
Each turret is equipped with a pressure gauge.
